Scalable Energy Storage Solution Using Parallel G3-S5 Systems

Future-proof energy storage with scalable expansion capability

Managing Rising Energy Demand Without Compromise or System Redesign

Across the UK, electricity demand is evolving rapidly as businesses and households adopt electrified heating, EV charging, and on-site renewable generation. This shift places greater emphasis on flexible energy infrastructure that can adapt over time, rather than on fixed systems designed solely for current needs. Battery storage installations that allow straightforward expansion without major redesign are increasingly important, helping manage rising consumption, optimise solar generation, and protect against future energy price volatility.

As energy demand at this site continued to increase, a scalable and future proof energy storage solution became essential. AlphaESS G3-S5 systems were selected and installed in parallel so the site could meet current power requirements while retaining the flexibility to expand capacity as energy usage grows. This approach ensures operational stability today while providing a clear pathway for future upgrades without disruptive infrastructure changes.

The system was professionally designed and installed by Electrical Innovations, delivering a high-quality, reliable, and fully compliant solution that supports both immediate performance requirements and long-term energy resilience.

Parallel G3-S5 Configuration Enables Scalable, Reliable Energy Storage

DISCOVER THE PROJECT AT A GLANCE

Installer: Electrical Innovations

System: AlphaESS G3-S5 parallel configuration

Project Goal: Scalable battery storage to support rising energy demand

Installed PV Capacity: 10 kW

Battery Storage: 20 kWh installed, expandable to 120 kWh

Charge / Discharge Rate: 10 kW

Key Objective: Future-proof energy storage with scalable expansion capability

Core Benefit: Reliable performance today with clear upgrade potential

Designing this scalable installation was key for the client. Deploying the AlphaESS G3-S5 systems in parallel ensured strong initial performance and easy expansion, allowing the site to increase storage and solar capacity confidently without redesigning the system.

Ben Curry, Electrical Innovations

Designed for Growth, A Smarter Parallel Energy Storage Solution

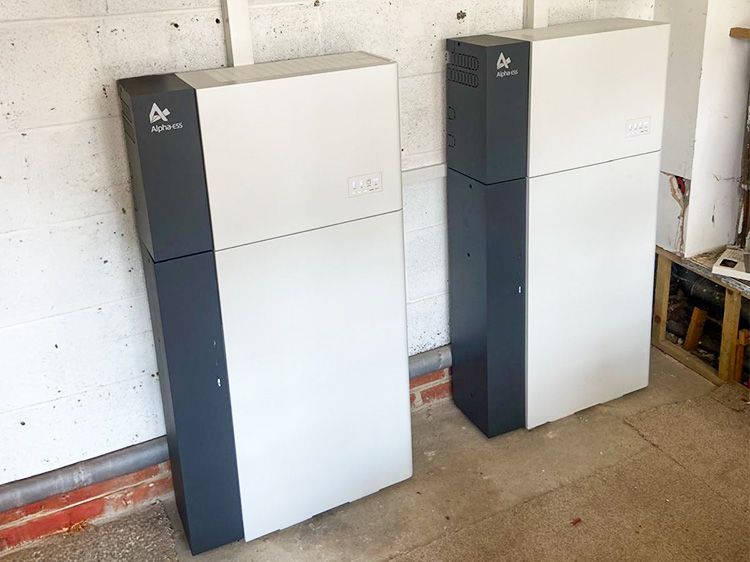

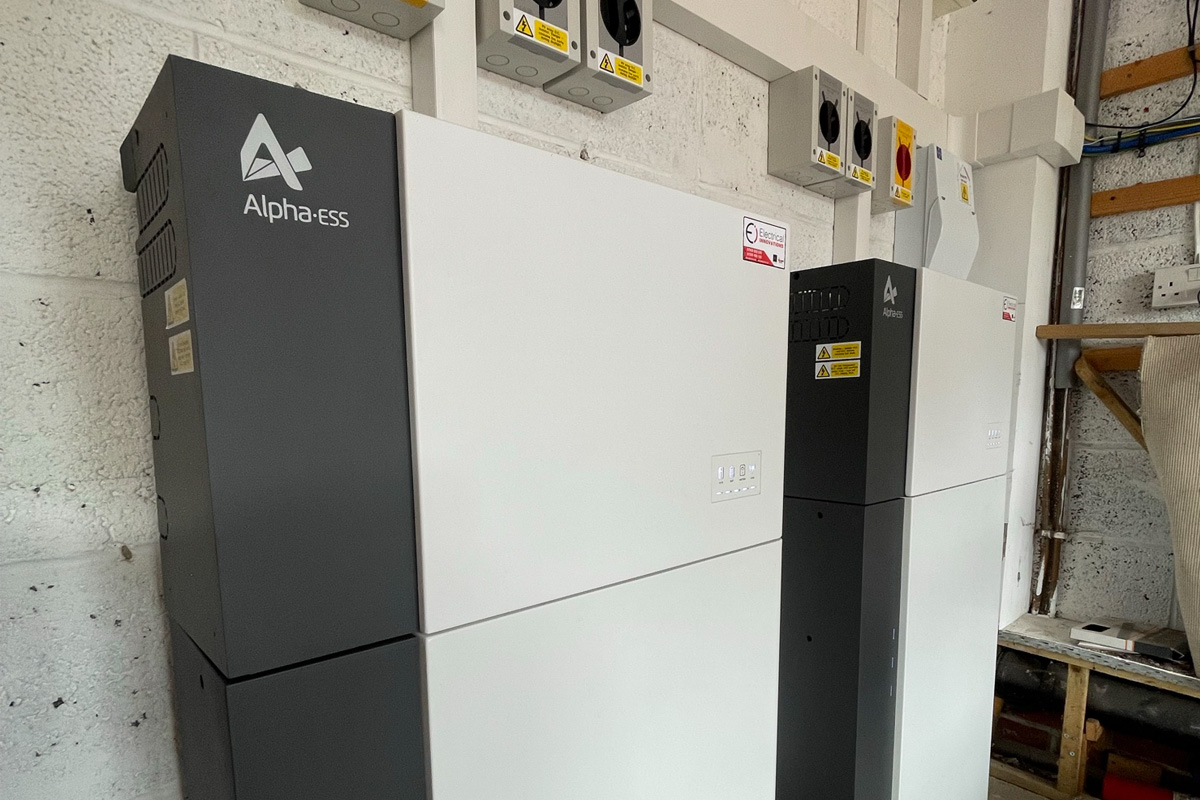

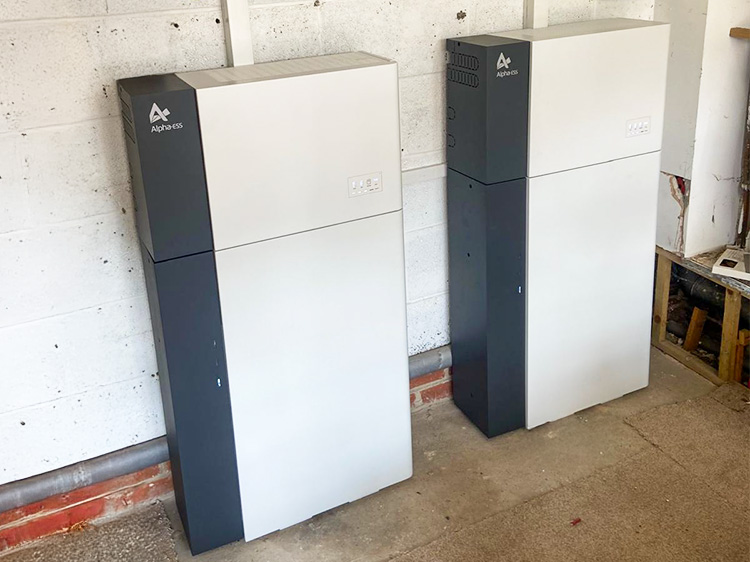

To meet increasing energy demand while maintaining flexibility for future expansion, a parallel AlphaESS G3-S5 configuration was selected for this installation. Using two systems in tandem enables the site to benefit from enhanced power capacity and greater storage capacity from the outset, while also creating a clear pathway for future upgrades without significant infrastructure changes. This makes the configuration particularly well-suited to sites where energy requirements are expected to evolve over time.

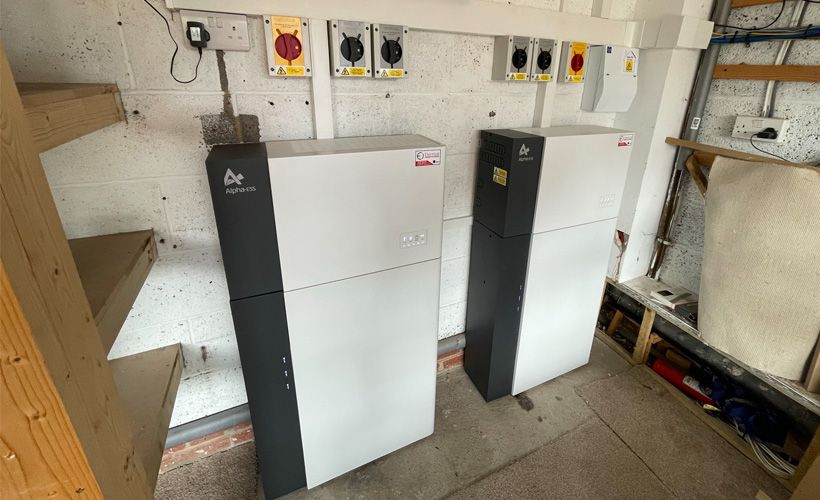

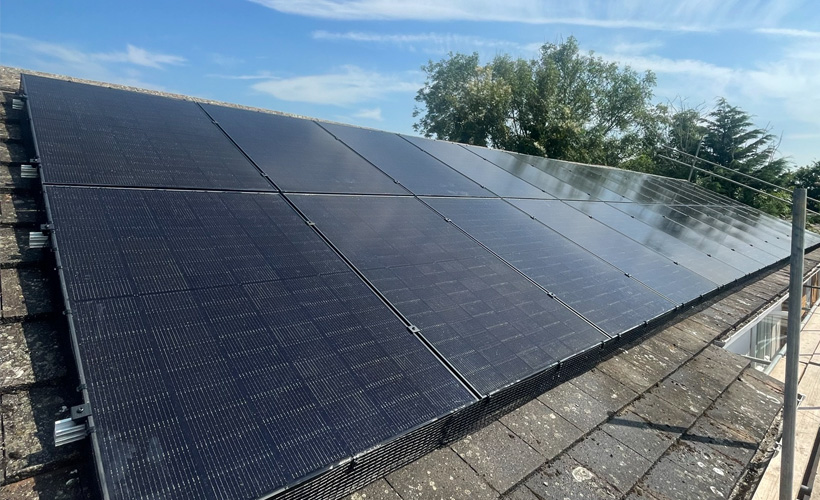

The installed system includes 10 kW of solar PV capacity, a 10 kW charge and discharge rate, and 20 kWh of battery storage, professionally designed and delivered by Electrical Innovations. This setup provides reliable day-to-day performance, supports effective solar energy utilisation, and ensures stable operation during peak demand periods.

A key advantage of the parallel G3-S5 platform is its scalability. The system architecture supports expansion up to 20 kW of DC coupled solar PV and as much as 120 kWh of battery storage. This capability enables the site to respond confidently to rising electricity demand, additional electrification, or increased renewable generation, without the disruption or cost of redesigning the entire energy system.

The Challenge - Balancing Immediate Performance With Long-Term Flexibility

The primary challenge for this installation and initial design was accommodating increasing electricity usage without compromising system stability or requiring a complete system redesign. The client needed a solution that could deliver reliable performance today while allowing for significant future expansion.

System Features and Benefits

Increased Power and Storage Capacity: Electrical Innovations installed a parallel AlphaESS G3-S5 system to increase power output and storage capacity, enabling the site to meet higher energy demand while maintaining efficiency.
Optimised Solar Energy Use: The system captures excess solar generation for later use, delivering stable charge and discharge performance while reducing reliance on grid electricity.
Built-In Scalability for Future Growth: The parallel configuration allows straightforward expansion of PV and battery capacity, providing a future-ready solution without major infrastructure changes.

Demonstrating Visible Results & Benefits

Enhanced Energy Availability: The system comfortably supports current site requirements.
Exceptional Scalability: The parallel G3-S5 platform allows expansion up to 20 kW of PV and 120 kWh of storage.
Optimised Solar Utilisation: The installed 10 kW PV system is effectively utilised, supported by ample storage capacity.
Professional Installation: Delivered to a high standard by Electrical Innovations, ensuring long-term reliability and performance.

With an expansion capacity of up to

120

of energy storage and 20 kW of PV

A Scalable Energy Storage Solution Ready for Today and Tomorrow

This project demonstrates how Alpha-ESS G3-S5 systems, when installed in parallel, provide a powerful, flexible, and future-ready energy storage solution. With expert installation by Electrical Innovations and the ability to scale up to substantial PV and battery capacities, the site is now well positioned to meet both current and future energy demands.
